**Soporta CPU’s Ryzen serie 5000 a partir de la BIOS 1004**

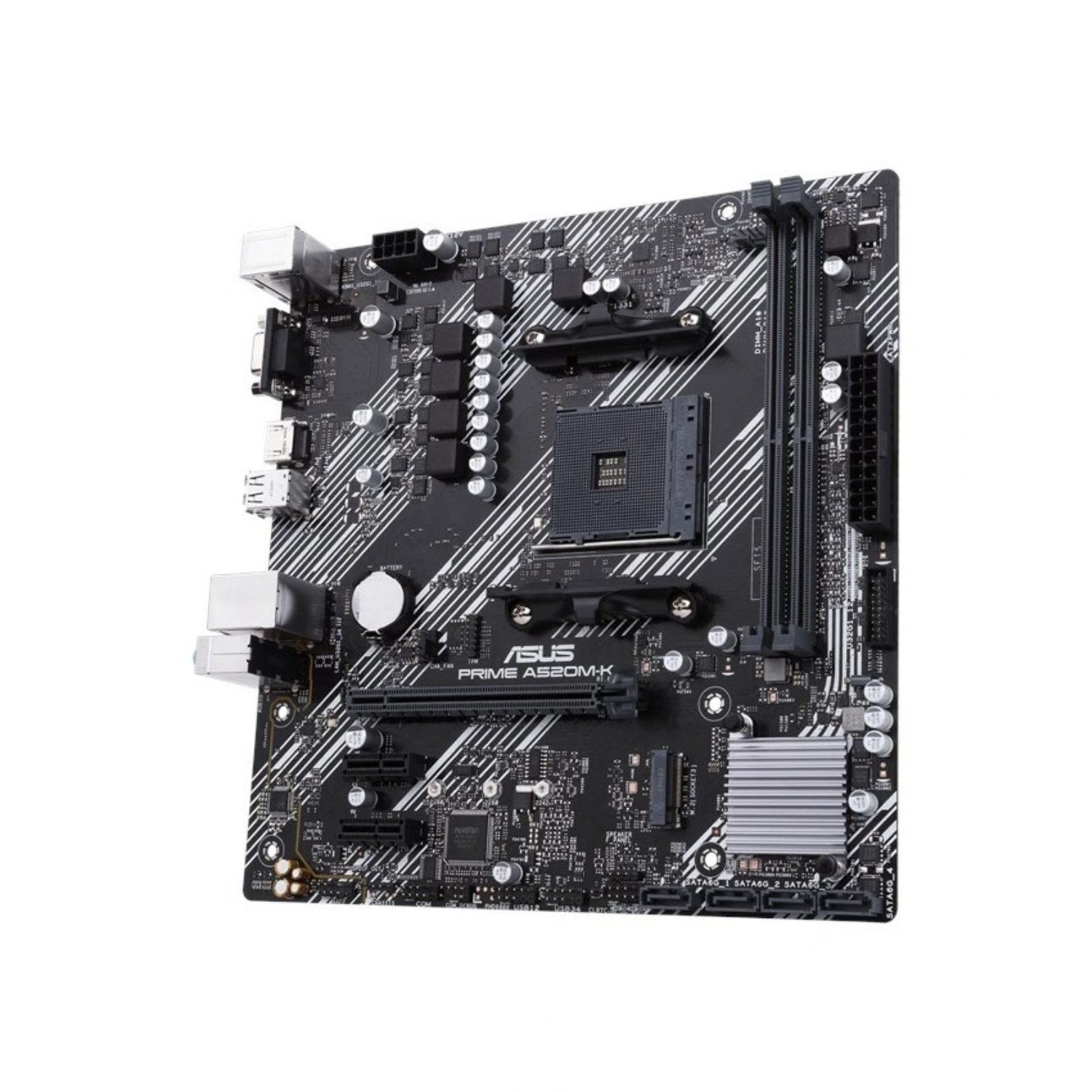

CPU
► AMD AM4 Socket para 3rd Gen AMD Ryzen y 3rd Gen AMD Ryzen con gráficos Radeon
Chipset
► AMD A520
Memoria
► 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
► Dual Channel Memory Architecture
► ECC Memory (ECC mode) support varies by CPU.
Gráficos
► 1 x D-Sub
► 1 x HDMI 2.1(4K@60HZ)
► Expansion Slots
► 1 x PCIe 3.0 x16 (x16 mode)
► 2 x PCIe 3.0 x1
Almacenamiento
► Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
► Support Raid 0, 1, 10
LAN
► Realtek RTL8111H 1Gb Ethernet
► ASUS LANGuard
Audio
► Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Supports:
► Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature:
► Audio Shielding
► Dedicated audio PCB layers
Puertos USB
► Rear USB Port ( Total 6 )
► 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
► 2 x USB 2.0 port(s)(2 x Type-A)
► Front USB Port ( Total 6 )
► 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
► 4 x USB 2.0 port(s)(4 x Type-A)

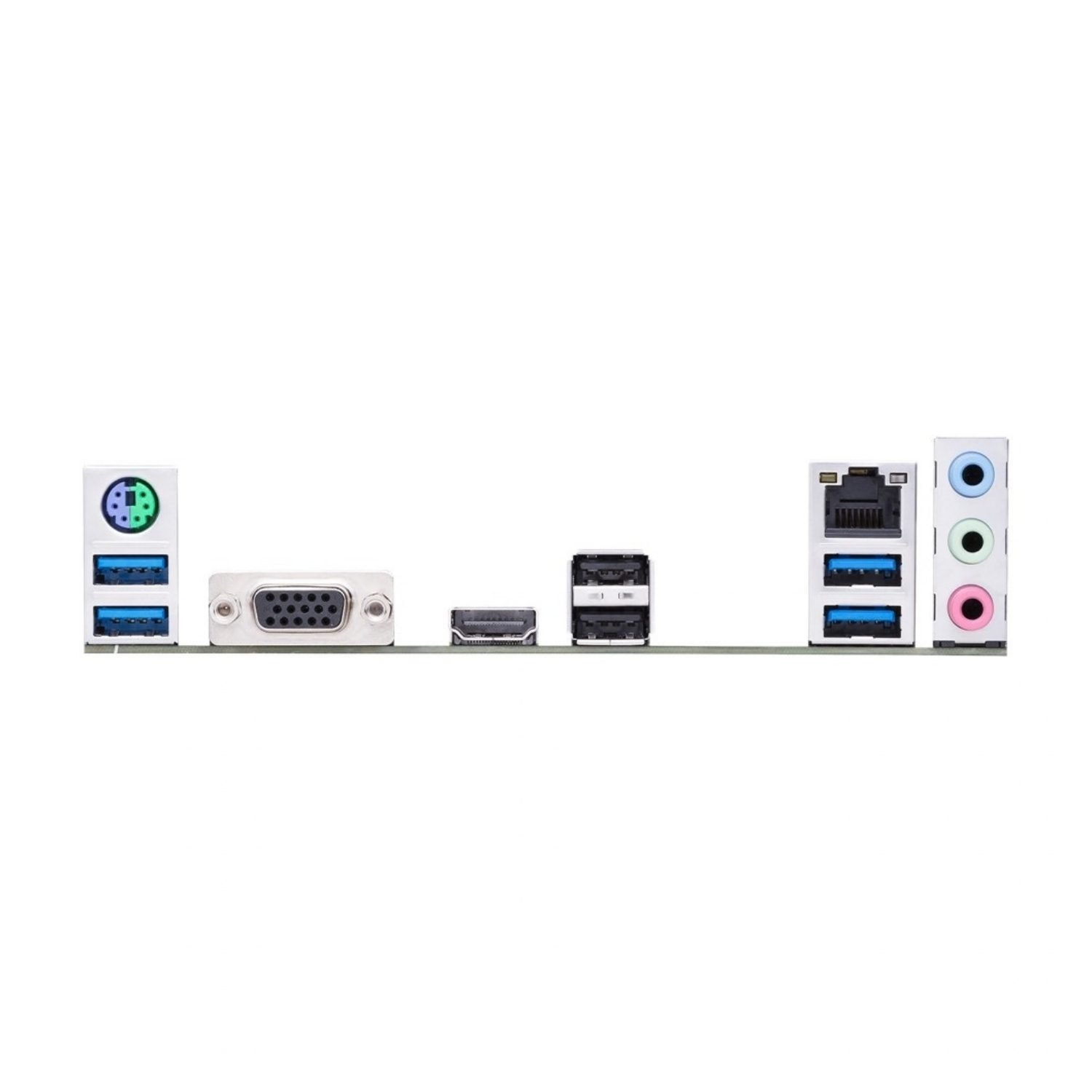

Puertos traseros
► 1 x PS/2 keyboard/mouse combo port(s)
► 1 x D-Sub
► 1 x HDMI
► 1 x LAN (RJ45) port(s)
► 4 x USB 3.2 Gen 1 (blue) Type-A
► 2 x USB 2.0
► 3 x Audio jack(s)
Puertos internos
► 1 x CPU Fan connector(s)
► 1 x Chassis Fan connector(s)
► 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
► 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
► 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
► 1 x SPI TPM header
► 4 x SATA 6Gb/s connector(s)
► 1 x S/PDIF out header(s)
► 1 x 24-pin EATX Power connector(s)
► 1 x 8-pin EATX 12V Power connectors
► 1 x Front panel audio connector(s) (AAFP)
► 1 x Clear CMOS jumper(s)
► 1 x System panel connector
► 1 x COM port header
► 1 x Speaker connector
Factor de forma
► mATX Form Factor
► 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
